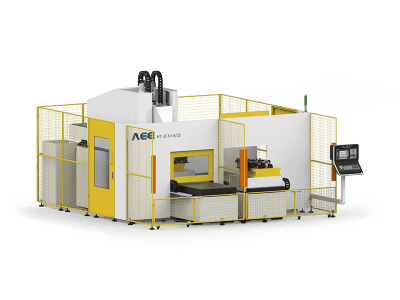

Dual-Worktable C-type FSW Machine
- High-quality seams
- Parameter traceability system
- Full security guard
- Customized fixture
- Remote assistance
- Force control system
| Machine Model | AEE FSW 8×10/2S | |
| Basic parameters | Worktable(width×length)(mm) | 600×1000×2 |
| Machine Length×Width×Height(mm) | 4600×4200×2700 | |
| Machine weight(kg) | 10,000 | |
| Compressed air request | Min.0.4, 1m³/min, φ8 | |
| Welding parameters | Max. welding thickness(mm) | 8 |
| Welding Dimension | 2D | |
| Traverse stroke | X-axis (mm) | 1000 × 2 |
| Y-axis (mm) | 600 | |
| Z-axis (mm) | 300 | |
| V1 (mm) | 1200 | |
| V2 (mm) | 1200 | |
| C-axis (°) | N × 360 | |
| B-axis (°) | 5 (Manual) | |
| Feed rate | X-axis (mm/min) | 7 |
| Y-axis (mm/min) | 7 | |
| Z-axis (mm/min) | 3 | |
| C-axis (r/min) | 20 | |
| Axis accuracy | Positioning X/Y/Z (mm) | 0.05 |
| Repeatability X/Y/Z (mm) | 0.03 | |
| Spindle parameters | Spindle Speed(rpm) | 6000 |
| Spindle Torque(Nm) | 65 | |
| Spindle Power(kW) | 15 | |
| Force parameters | Max. force in Z-axis(kN) | 30 |
| Max. force in X-axis(kN) | 15 | |
